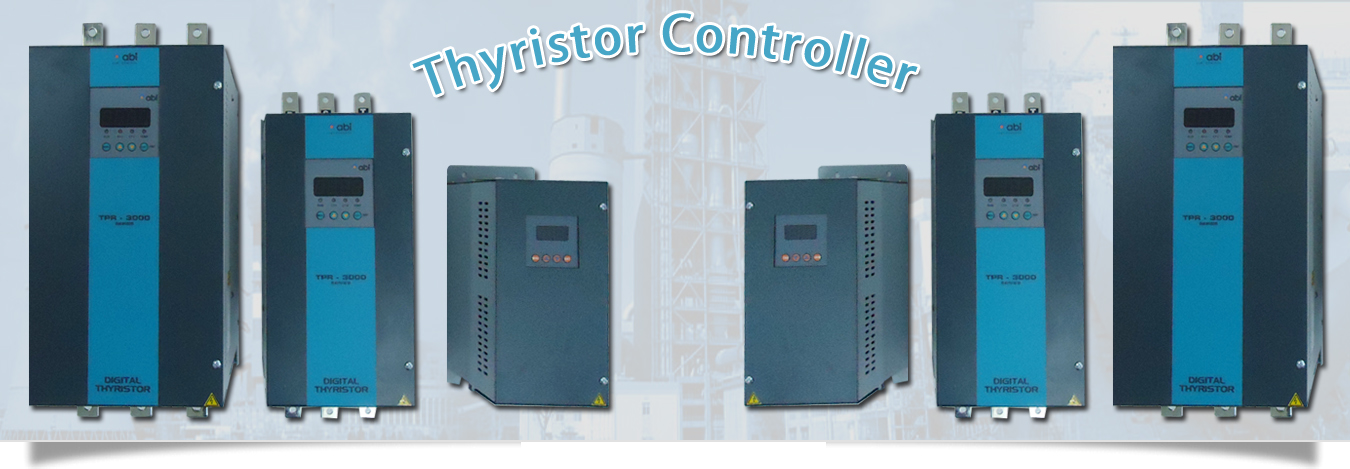

Thyristor Power Controller- Digital
Features
» Micro-Controller based
» Digital Display & keys
» All types of protective functions
» RS 485 interface
» Operation by remote control
» Compact size

 Specifications:
Control Input  :   Current:  DC 4-20mA.
                            Contact:  Zero Voltage
Output Voltage :  97% minimum. 50/60Hz of InputVoltage
Control Mode :  Phase Angle
Possible Load  :  All Resistance Load Transformer Primary
Current Rating : 35A,50A, 80A, 100A, 120A, 150A, 200A, 250A, 500A
Voltage Range : 100, 220, 380, 415, 440, 460V AC-50 / 60Hz
